How to Read Valve Pressure Rating Tables (Avoid Costly Errors)
INTRODUCTION: WHY PRESSURE RATING TABLES MATTER

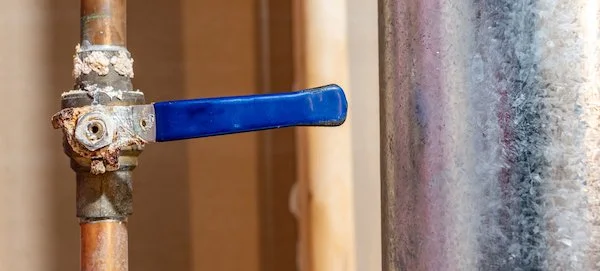

Valve pressure rating tables are some of the most important — and most misunderstood — references in the industry. On the surface, they look simple. In practice, misreading them is one of the most common causes of valve leakage, premature failure, and non-compliance.
Pressure rating tables exist to define safe operating limits under real conditions, not just best-case scenarios. Knowing how to read them correctly is essential for engineers, specifiers, and buyers alike.
WHAT A VALVE PRESSURE RATING TABLE ACTUALLY SHOWS
A pressure rating table does not give a single “maximum pressure” value. Instead, it shows how allowable pressure changes with temperature for a specific standard, material, and valve class.
Most tables are structured with:
• Temperature values along one axis
• Allowable pressure on the other
• Separate columns or rows for material groups or classes
The key point is this: pressure ratings are conditional, not absolute.
STEP 1: IDENTIFY THE CORRECT STANDARD
Before reading any table, you must confirm which standard applies. Common examples include PN (EN standards) and ANSI / ASME classes.
Using the wrong table — even if the numbers look similar — invalidates the rating. Never mix standards when checking pressure limits.
Project specifications, pipework, and flanges usually dictate which standard must be followed.
STEP 2: CONFIRM THE VALVE MATERIAL
Pressure–temperature tables are always material-specific. Carbon steel, stainless steel, duplex, bronze, and cast iron all have different strength characteristics as temperature rises.
A Class 300 valve in carbon steel will have different allowable pressures than the same class in stainless steel. This is a common and costly oversight.
Always match the table to the exact body material, not a “similar” one.
STEP 3: USE MAXIMUM OPERATING TEMPERATURE — NOT NORMAL
One of the biggest mistakes is using normal operating temperature instead of the maximum possible temperature. Start-up conditions, upset scenarios, steam cleaning, or ambient heat can all push temperatures higher than expected.
Pressure ratings must be checked against the worst-case temperature, not the average.
Designing too close to the limit leaves no margin for error.
STEP 4: READ ACROSS — NOT DOWN
Many errors come from reading tables incorrectly. Once you identify the correct temperature, you must read across the row to find the allowable pressure for the correct class or material.
Reading down the column — or assuming a value applies across all temperatures — leads to incorrect conclusions.
Pressure ratings always change with temperature.
STEP 5: APPLY A SAFETY MARGIN
Operating continuously at the maximum allowable pressure accelerates wear and increases failure risk. Designing with margin improves reliability and lifespan.
Pressure rating tables define the maximum allowable limits, not recommended operating points. Good practice is to apply a safety margin, especially in cyclic, critical, or hazardous applications.
COMMON MISTAKES THAT CAUSE FAILURES
• Using pressure rating at 20°C only
• Ignoring temperature spikes
• Assuming PN and ANSI are interchangeable
• Overlooking seal and seat material limits
• Reading the wrong material table
These errors often don’t cause immediate failure — they cause gradual degradation that’s harder to detect.
WHEN PRESSURE RATING TABLES ARE MOST CRITICAL
Pressure rating interpretation is especially critical in steam systems, oil & gas, chemical processing, and high-pressure gas applications. In these environments, small errors escalate quickly.
Correct use of rating tables protects not just equipment, but safety, compliance, and uptime.
TABLES ARE GUIDES — NOT GUESSWORK
Valve pressure rating tables are powerful tools when used correctly. They remove assumptions and replace them with defined limits based on standards and material science.
Understanding how to read them properly is one of the most valuable skills in valve selection and specification.
